| Place of Origin: | Beijing, China |
| Brand Name: | PERSEE |
| Model Number: | T8DCS |

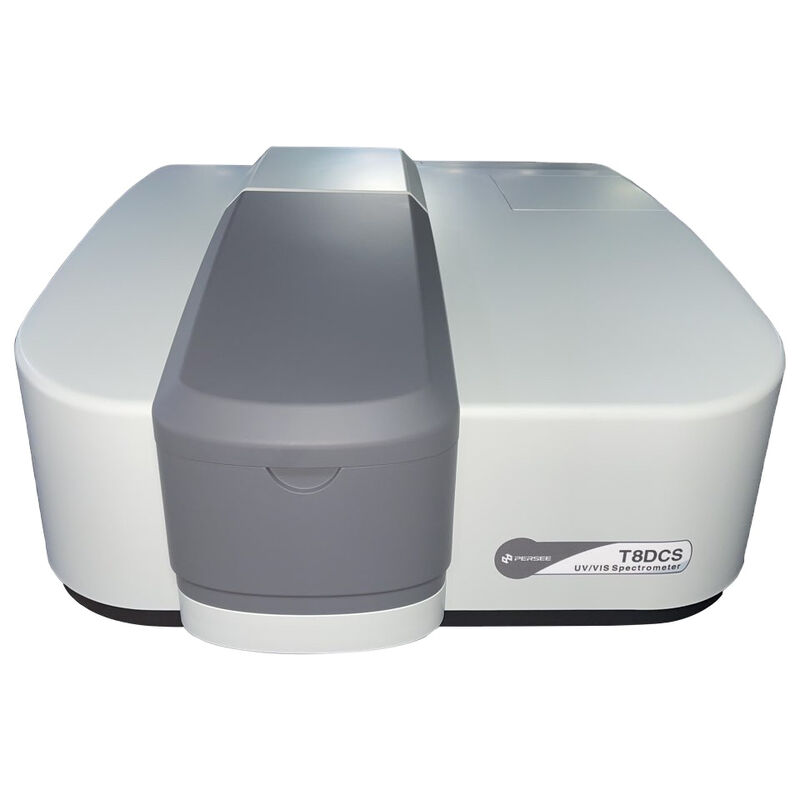

The T8DCS is a high performance double beam spectrophotometer with a variable spectral bandwidth from 0.1-5nm, selected by a continuous variable slit. The instrument is fitted with an embeded PC for extensive local functionality via the UVWin Software.
The Czerny-Turner monochromator with a holographic grating keeps stray light to a minimum and offers excellent optical resolution. The use of a photomultiplier tube as a detector offers exceptional sensitivity.
The T8DCS is true double beam optical system coupled with an efficient and well proven electronic control system ensures high stability and low background noise.
Specifications
|
Optical system |
Double beam |
|
Scan speed |
Selectable |
|
Wavelength range |
190-900nm |
|
Wavelength accuracy |
+0.3nm |
|
Wavelength reproducibility |
≤0.1nm |
|
Spectral bandwidth |
Continuous slit 0.1- 5.0nm with 0.1nm interval |
|
Photometric mode |
Transmittance, Absorbance, Energy Concentration, all using UVWin software |
|
Photometric range |
-4.0-4.0Abs |
|
Photometric accuracy |
0.002A (0-0.5A), 0.004A (0.5-1A), 0.3%T (0-100%T) |
|
Photometric reproducibility |
0.001A(0-0.5A) |
|
Photometric noise |
0.0004A(500nm) 30min warm-up |
|
Baseline flatness |
0.001A(200-850nm) |
|
Baseline stability |
0.0008A/h (500nm, 0Abs), 2hr warm-up |
|
Stray light |
≤0.01%T(220nm NaI, 340nm NaNO2) |
|
Standard functionality |
No stand alone function |
|
Cell holder |
Fixed position sample and reference |
|
Detector |
Photo multiplier tube |
|
Light source |
Tungsten Halogen and Deuterium arc lamps |
|
Display |
No display |
|
Printer |
Not available |
|
PC interface |
RS232 |
|
Software support |
UV Win |
|
Power supply |
Switch mode 120-230VAC 50-60Hz |
|
Weight |
43kg |
|
Dimension |
545x580x270mm |
Features & Functions
Optical System & Components
The T8DCS features an advanced continuous variable bandwidth feature making it the instrument of choice for applications with a demand for precise and accurate control of wavelength resolution. This feature allows the user to specify exactly what bandpass is required in the range of 0.1-5nm.
The double beam optical design combined with a high specification holographic grating gives excellent wavelength separation allowing the user to measure close adjacent wavelengths with excellent sensitivity.
The modular design of the sample compartment allows for ease of use of a wide range of optional accessories ensuring accurate analysis of various sample types including liquids, thin films and powders.
The user friendly design of the lamp compartment allows easy replacement and simplified routine maintenance of the Deuterium and Tungsten lamps.
The high specification embedded PC features in the T8DCS provides, full instrument control, data acquisition and processing of measurement data is possible by means of the UV-Win software. For more information please refer to the UV-Win section of this brochure.
Accessories
Test Tube Holder 13-16mm Variable
Description: The test tube holder is used to put test tubes. It is easy to measure the liquid contained in test tubes.
Wavelength range: 190-900nm, Test tube diameter: 15～25mm, Test tube Height: 90～120mm
Integrating sphere
Description:
A standard whiteboard is offered to measure the reflectance at fixed wavelength and reflection spectrum on the face of solids. It also can be used for the analysis of colour, chromatism and whiteness.
Incident angle: Sample 0°, reference 8°, Minimum dimensions: 15mm×25mm Diffuse reflectance, Minimum dimensions: Diameter 20mm Transmittance, Wavelength range: 230-850nm 5nm slit, Sphere diameter: 58mm
Peltier system
Description:
Temperature range: 5-75℃, work together with constant temperature holder
Fixed Position 10mm Constant Temperature Cell Holder
Description: There are pipes on the holder. It can be connected with a constant-temperature water bath device to control the temperature of samples. Users must prepare a constant-temperature water bath device. The cuvettes can be standard ones of 10mm path length or flow cells.
Connection tube: Inner diameterΦ4mm, Wavelength range: 190－900nm, Pathlength: 10mm, amount of Cell holder: 2
Sipper Pump
Description: The sipper pump is a soft-tube pump, which can transmit liquid from dual directions. It is widely used in research and production of refined chemistry, biophysics, biochemistry, environmental protection, pharmaceuticals and other industries. It is an ideal device for transmitting sticky and corrosive liquids.
Rotation speed range: 0.1-250 rpm, Speed resolution: 0.1rpm: lower than 30rpm, 1 rpm: higher than 30rpm
Picture:
Solid sample holder
Description:
Wavelength range: 190-900nm, Maximum sample size:80x55x5mm
Picture:
Adjustable Angle Solid Sample Holder
Description: It is used to measure solid samples. The thickness of samples is smaller than 5mm.
Wavelength range: 190-900nm, Variable angle range: ±45°, Minimum sample size: φ4mm, Maximum sample size:80x55x5mm
Picture:
Specula Reflectance Accessory
Description: It can be used to measure the specular reflection spectrum of optical flats, planes of crystals, and interference absorbers with coating. The samples are illuminated with an incidence angle of 5 degrees, so the polarizing effect can be ignored.
Dimension of samples: Length: 10-100mm Width: 20-60mm Thickness: <10mm
Microcell holder
Description: The cuvettes with a window of 2mm, such as QS2 scarf micro cuvettes, QF2 micro flow cells, MC and SM micro cuvettes with rectangular window of 2x5mm or 2x8mm. The transverse adjustment makes the light pass the window accurately.
Wavelength Range: 190-900nm
Ultra Micro Cell Holder
Description: The condenser system let smaller spot be condensed on the cuvettes and let more light pass the cuvettes. When ultra-micro cuvettes with a round clear aperture of 2mm or rectangular aperture smaller than 2x5mm are used, a sufficient signal-noise ratio can be got. UMF, MC, SM or UM ultra-micro cuvettes can be fitted into the holder.
Wavelength Range: 190-900nm
Short path-length cell holder
Description:
The cuvette with a different path length of 1-5mm can be put in the holder. To be used together with 8 cell-holder, micro cell holder and ultra micro cell holder.
Path Length: 1mm,2mm,5mm
Long path-length cell holder
Description:
Two cuvettes with different long-pathlength of 5-50mm can be put in the holder.
Path Length: 5mm,10 mm,20 mm,30 mm,40 mm,50 mm,100 mm
Sample holders: 2
Wavelength Range: 190-900nm
Manual 8 Position Cell Holder
Description:
Sample holders: 9 cells
Maximum cells: 8cell/once
Wavelength range: 190-900nm
Picture:
