| Place of Origin: | Beijing, China |
| Brand Name: | PERSEE |
| Model Number: | T6U |

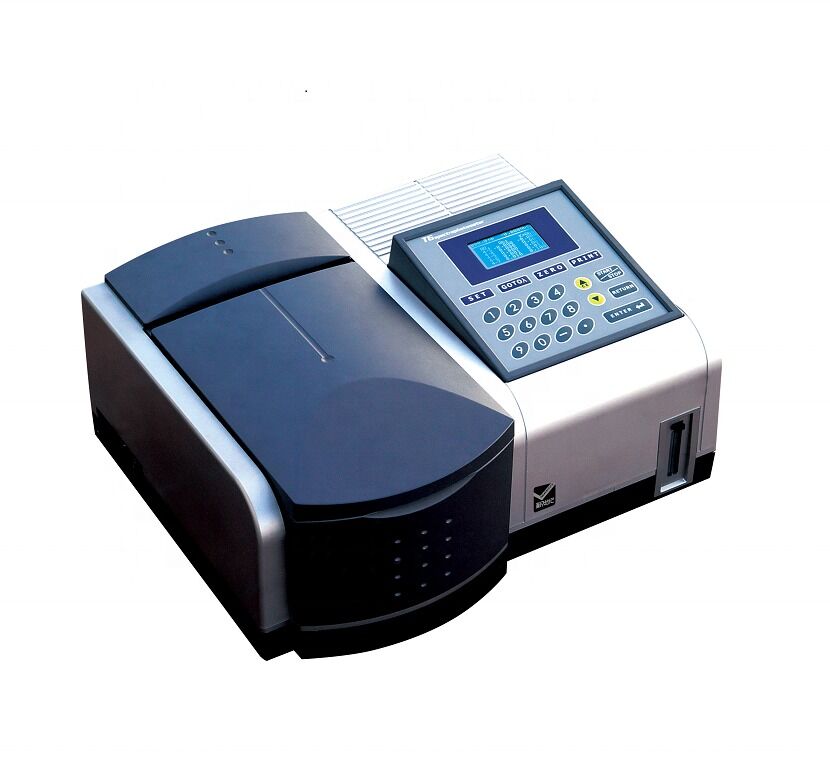

The T6U (UV-Visible) has a wavelength range of 190 -1100nm. The instrument has a switched mode power supply accepting voltages in the range of 95 - 240V AC and is supplied with either universal pathlength 5 cell changer or fixed path length 8 cell changer as standard. The T60 delivers the functionality and accuracy of an advanced instrument at an affordable price.
FEATURES & FUNCTIONS
1. Wavelength range: 190-1100nm
2. stray light less than 0.05%T
3. Entrance Level
4. Basic function
5. Espcially for teaching
Specifications:
|
Optical system |
Split beam ratio |
|
Scan speed |
Selectable |
|
Wavelength range |
190-1100nm |
|
Wavelength accuracy |
+1nm |
|
Wavelength reproducibility |
≤0.2nm |
|
Spectral bandwidth |
2nm |
|
Photometric mode |
Transmittance, Absorbance, Energy |
|
Photometric range |
-0.3-3.0Abs |
|
Photometric accuracy |
0.002A (0-0.5A), 0.004A (0.5-1A), 0.3%T (0-100%T) |
|
Photometric reproducibility |
00.001A(0-0.5A), 0.002A(0.5-1A), 0.15%T(0-100%T) |
|
Photometric noise |
0.001A(500nm) 30min warm-up |
|
Baseline flatness |
0.002A(200-1000nm) |
|
Baseline stability |
0.001A/h (500nm, 0Abs), 2hr warm-up |
|
Stray light |
≤0.05%T(220nm NaI, 340nm NaNO2) |
|
Standard functionality |
Photometric Measurement |
|
Detector |
Silicon photo diode |
|
Light source |
Tungsten Halogen and Deuterium arc lamps |
|
Display |
Digital LCD display |
|
Printer |
Mini printer |
|
PC interface |
RS232 |
|
Software support |
Local and UV Win |
|
Power supply |
Switch mode 95-250VAC 50-60Hz |
|
Weight |
11kg |
|
Dimension |
476x362x225mm |
Acessories
Packing List
| MODEL | PART NO | DESCRIPTION |
| T6U | 1 | Quantitative PCMCIA Program Card |
| 2 | 10mm Quartz Cells | |
| 1 | Black Block for Dark Current Correction | |
| 1 | Mains Power Lead | |
| 1 | 2A Fuse | |
| 1 | Dust Cover | |
| 1 | Operators Manual | |
| 1 | Calibration and System Documentation |
